1955-59 Chevy & GMC Truck Recessed Smoothie Steel Firewall For LS/LT Engines

$579.99

SKU:: RFWT-5559LS
UPC:
Part Type:: Cowl
Part Type:: Firewall
Part Type:: Transmission & Drivetrain
Vehicle Generations:: Chevy & GMC Truck

Custom 16-Gauge New Steel Firewall From Real Deal Steel
Center 2" Recess Gives Perfect Fit For LS & LT Engine Installations
Eliminates The Unsightly And Complex Original Firewall For A Much Cleaner Look
Welds In At Factory Firewall-To-Cowl Seam
Extra Clearance On Driver's Side Of Recess For Accelerator Pedal Placement
For Use With Stock Floor Or Real Deal Steel's Extra Legroom Floor Kit RFK-5559
Rounded Recess Corners That Look Far Better In A Classic That Square Corner Firewalls On The Market
Allows Use Of Vintage Air Gen IV AC Systems - But You Will Need To Fabricate Installation Brackets
Allows Use Of Raingear Wiper Systems
Requires Cutting, Welding And Fabrication Skills To Install

Remove the factory firewall at the firewall to cowl top/side pinchweld flange. If installing our EFK-5559 Extended Floor Kit, remove all the way to toe board to floor crease. If maintaining the stock toe board, only cut to top of toe board to firewall face crease.

The new firewall slips just behind the inner edges of the cowl sides and top. Trim as needed for precise fit. This way, the new firewall can be welded to the cowl from inside the cab. Be sure and mark the location of hood hinge holes from the old firewall and transfer to the new firewall. Either use nut inserts or welded nuts from behind to secure new hood hinge mounts.

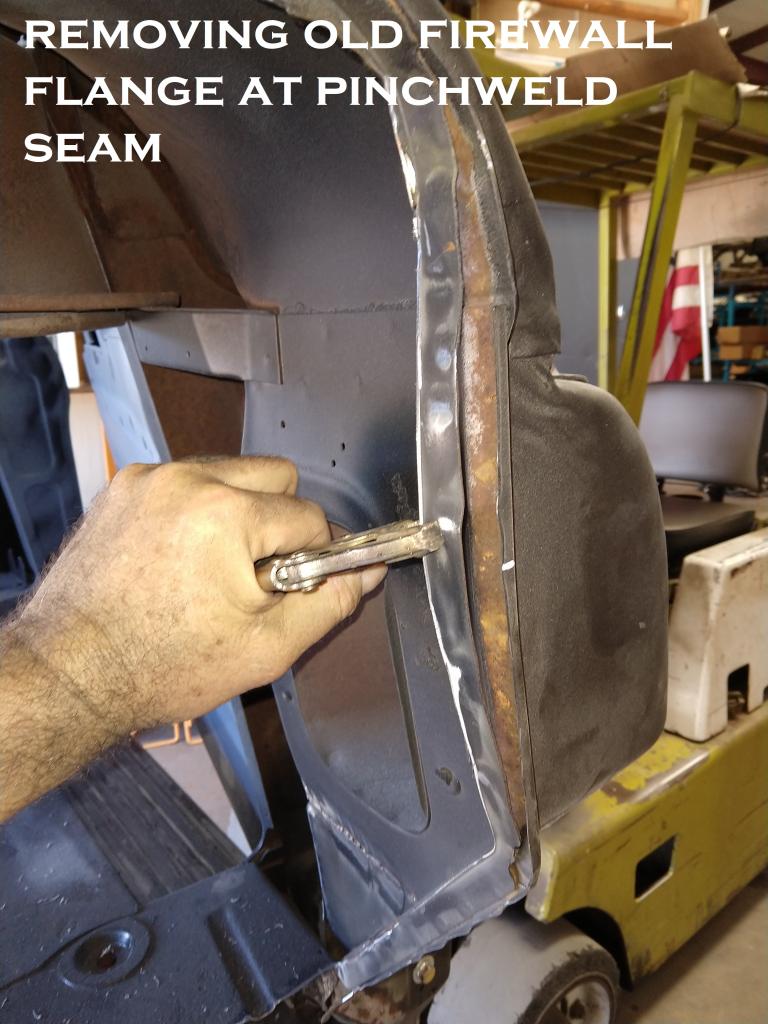

Close-up view of a technician using a locking clamp tool on a car body seam with white text explaining removal of the old firewall flange at the pinchweld seam

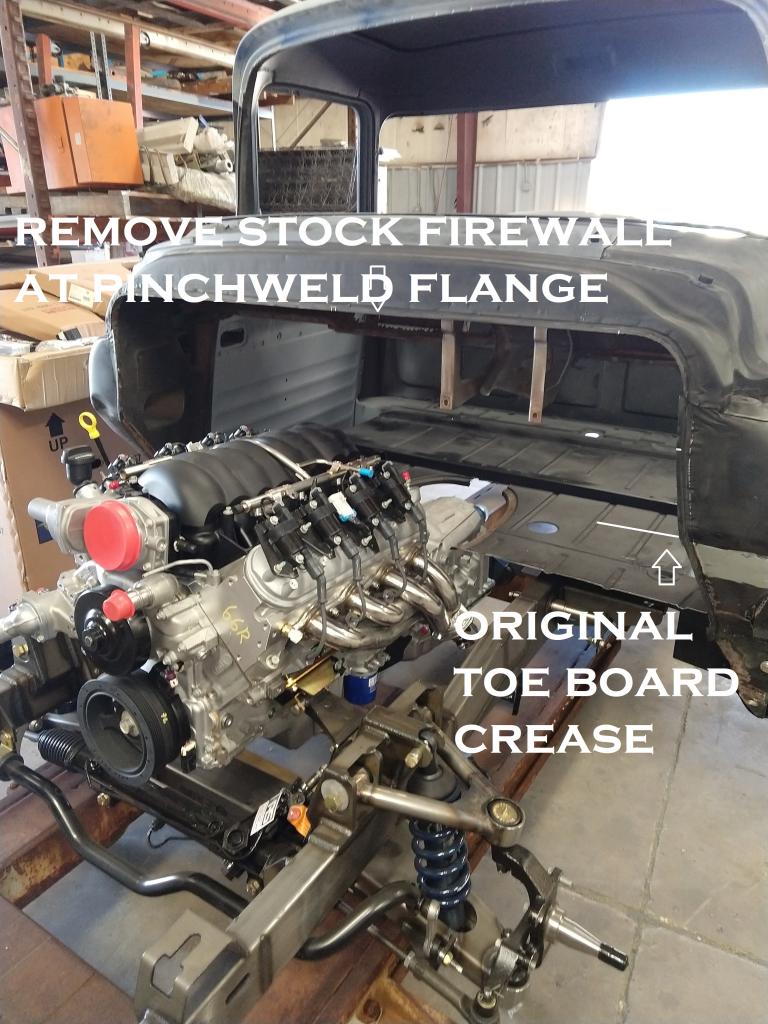

Wide shot of an unpainted classic truck cab frame positioned behind a V8 engine mockup with white text detailing firewall and toe board removal instructions

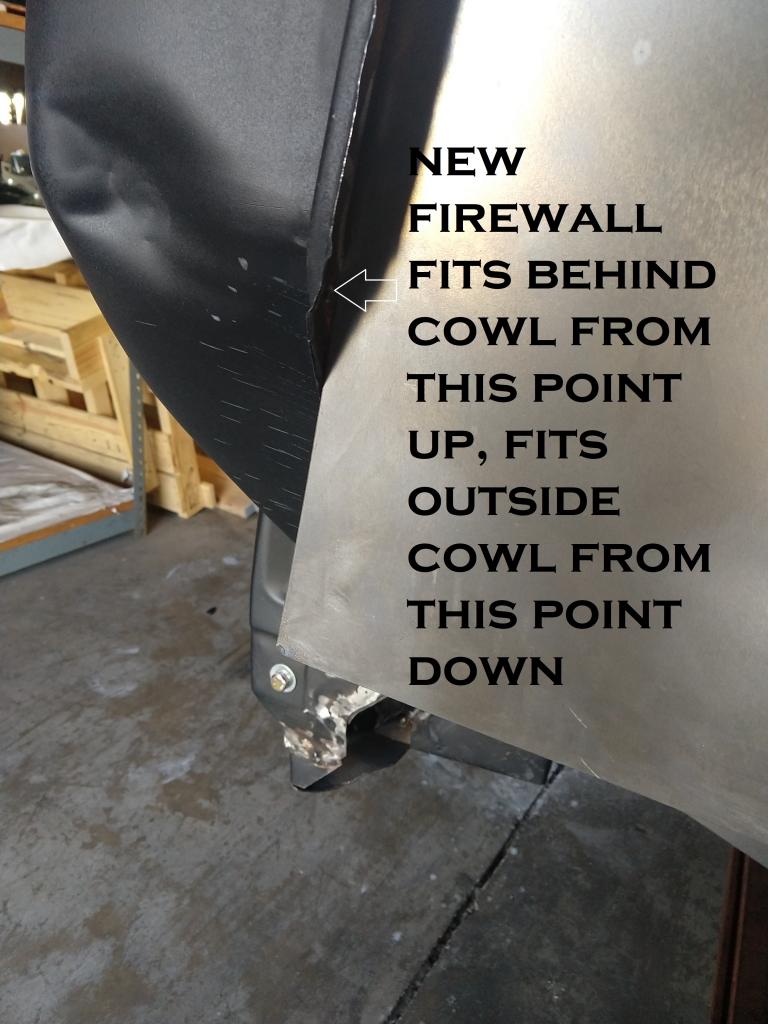

Close-up detail shot of overlapping automotive sheet metal pieces with black instructional text explaining how the new firewall fits relative to the cowl line
